Inesun Outdoor 2MP/5MP Vandal Dome IP Security Camera Pan Tilt 4X Optical Zoom PTZ Camera Mini IP66 Waterproof Outdoor Camera IK10 Vandal-Proof 100ft IR Night Vision

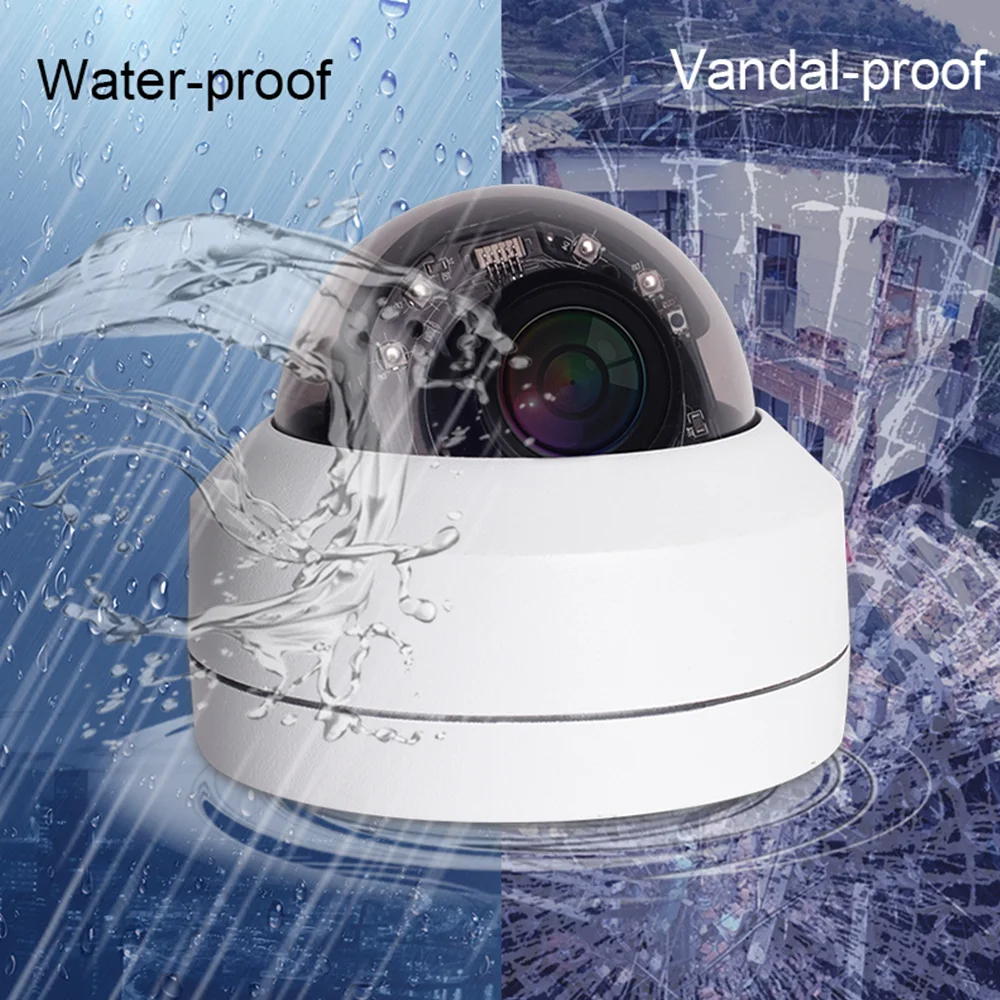

VANDAL-PROOF and Waterproof
IK10 vandal proof security camera build in PoE, IP66 Weatherproof body construction,simple & easy installation; solid & waterproof for outdoor, covert & discreet, works great for home & business, front yard, porch, home living room, retail store, office, warehouse, restaurant, apartment, bank;
355° Pan 70°Tilt
With pan function,This Mini PTZ security camera can rotate 355° endless horizontally. The tilt rotation at 70° makes a reliable home and business monitoring and surveillance without vertical limitations, leaving no “dead area”.
4X Optical Zoom
Varifocal zoom lens with auto-focus function 4X optical zoom IP camera enables a wide viewing angle. It lets you zoom in to see more details of far-away objects without getting closer, or zoom out to get a wider and larger view.

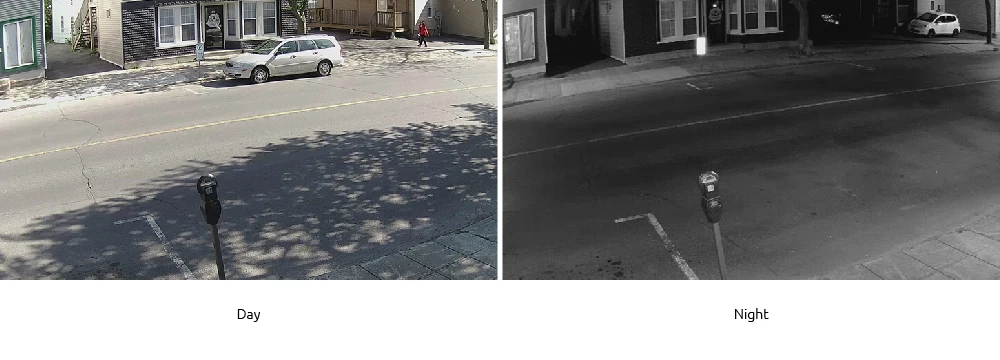

Night Vision – Up to 30m
The night vision security camera provides you 24/7 continuous monitoring and home surveillance. 4pcs of Infrared LEDs enable a super long-distance night vision – up to 100ft in low light conditions.
Support Motion Detection
Whenever a danger is detected, This surveillance camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device.
· You can create specific motion detecting zones to monitor certain areas as you want.
· You can adjust motion detection sensitivity to reduce false alerts.
Support P2P
P2P Mobile Phone View APP: P6SLite; View Anywhere & Anytime

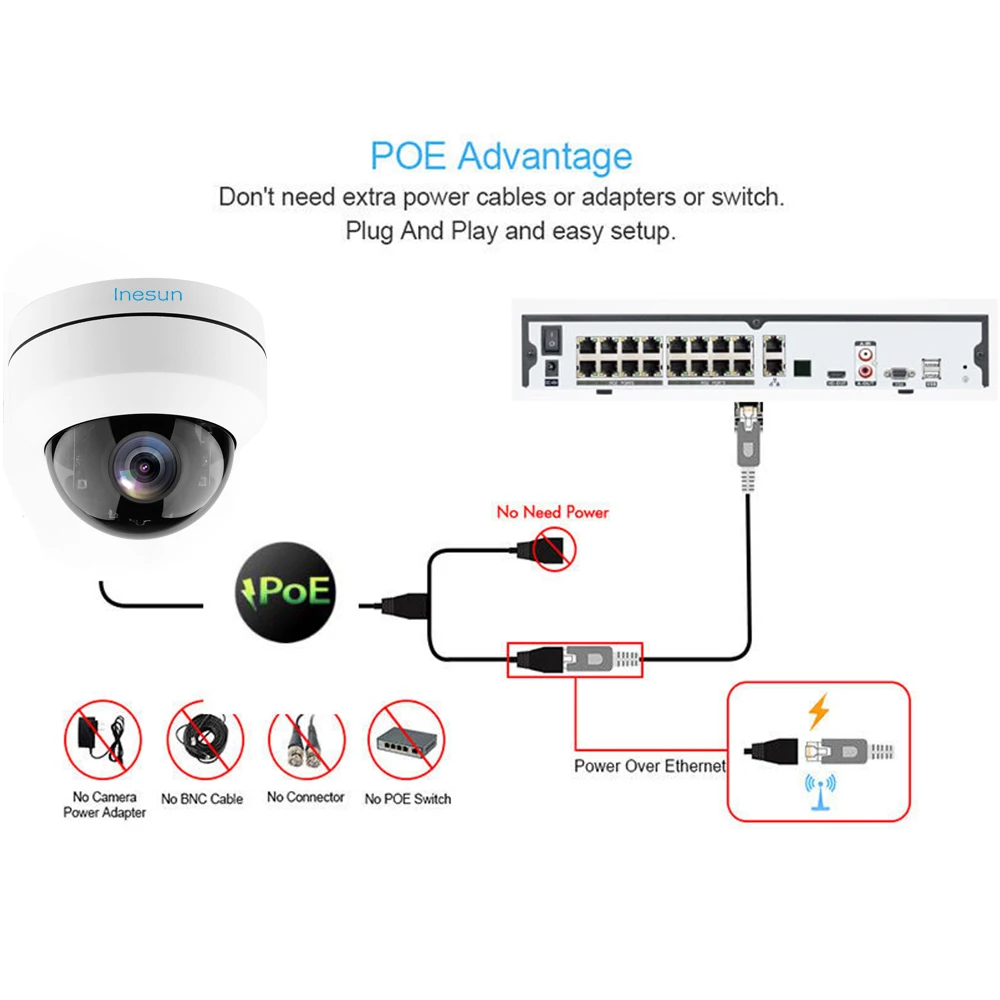

Power Over Ethernet(POE)
Quick Power Over Ethernet Setup Simple Power Over Ethernet Setup to tangle with less wires and less frustration. With this Power Over Ethernet (POE) camera, only connect it to 1 cord for both power and Ethernet. This camera requires a separate POE injector or POE switch to operate. A power supply and a POE injector are NOT included, and are sold separately.

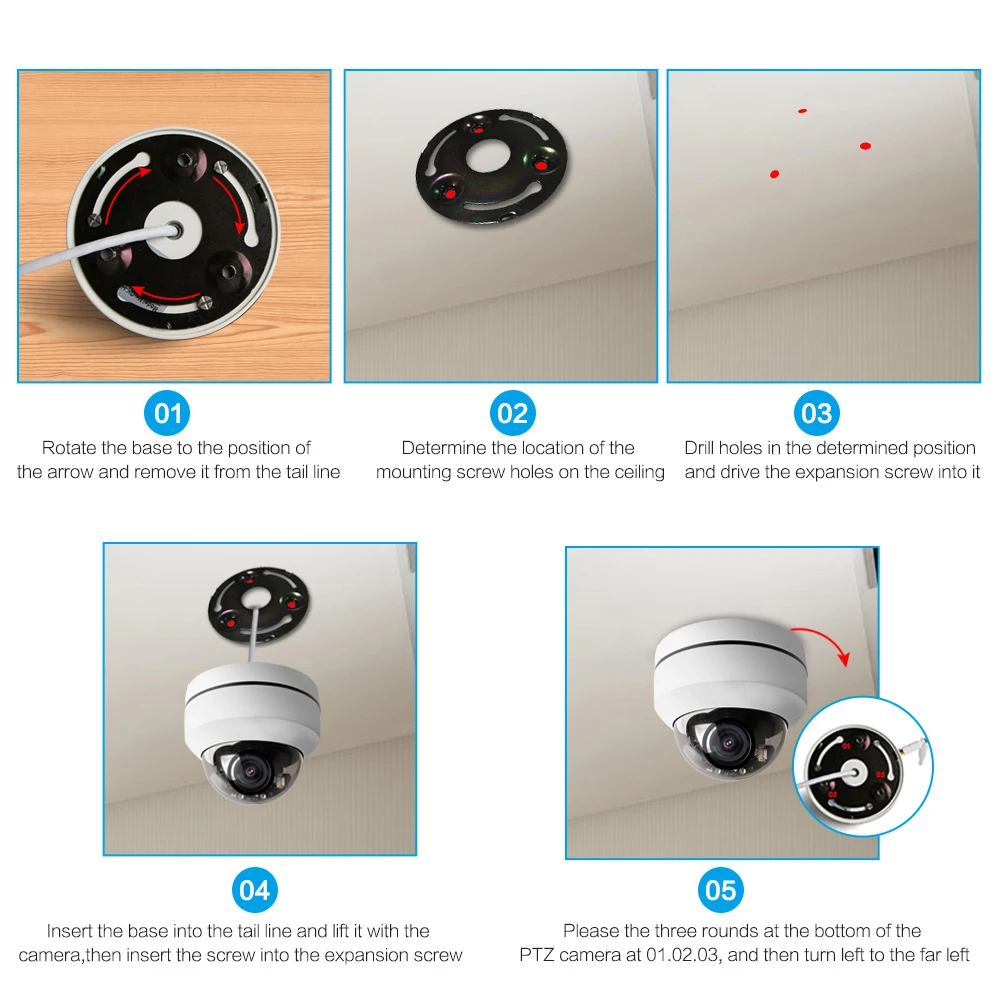

How to install this camera?
Questions & Answers;
1;this PoE IP Camera default IP address is 192.168.1.110, first you just need change your router LAN address to 192.168.1.xx,then you can view this camera on IE web browser, or on your phone APP" P6SLite"
2; as for PoE, you have to keep your PoE swtich each PoE port support 48V PoE, support IEEE 802.3at
3;This camera JUST supports Website Interface IE, Can Not support Chrome or Firefox

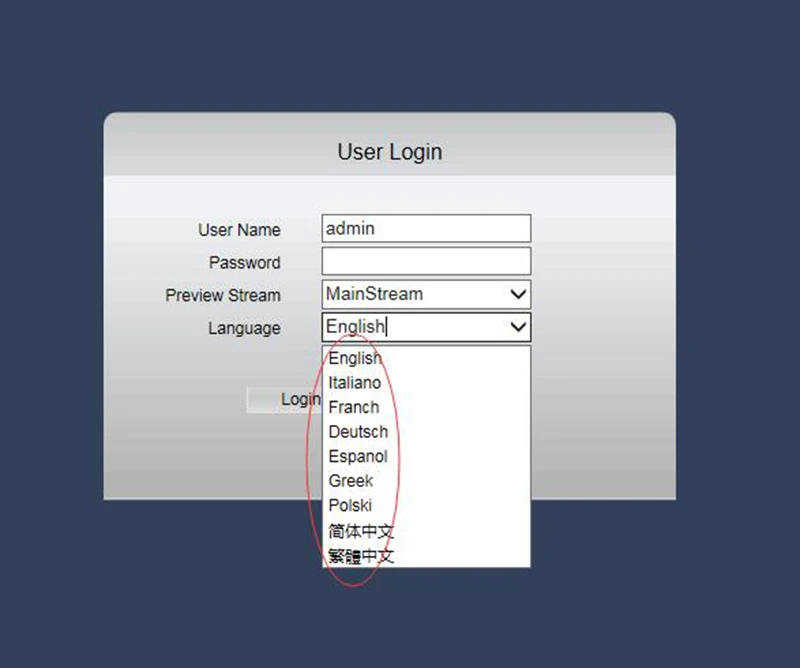

Q; what`s language this camera support?
A; This camera support English,Italiano,Franch,Deutsch,Espanol,Greek,Polski.

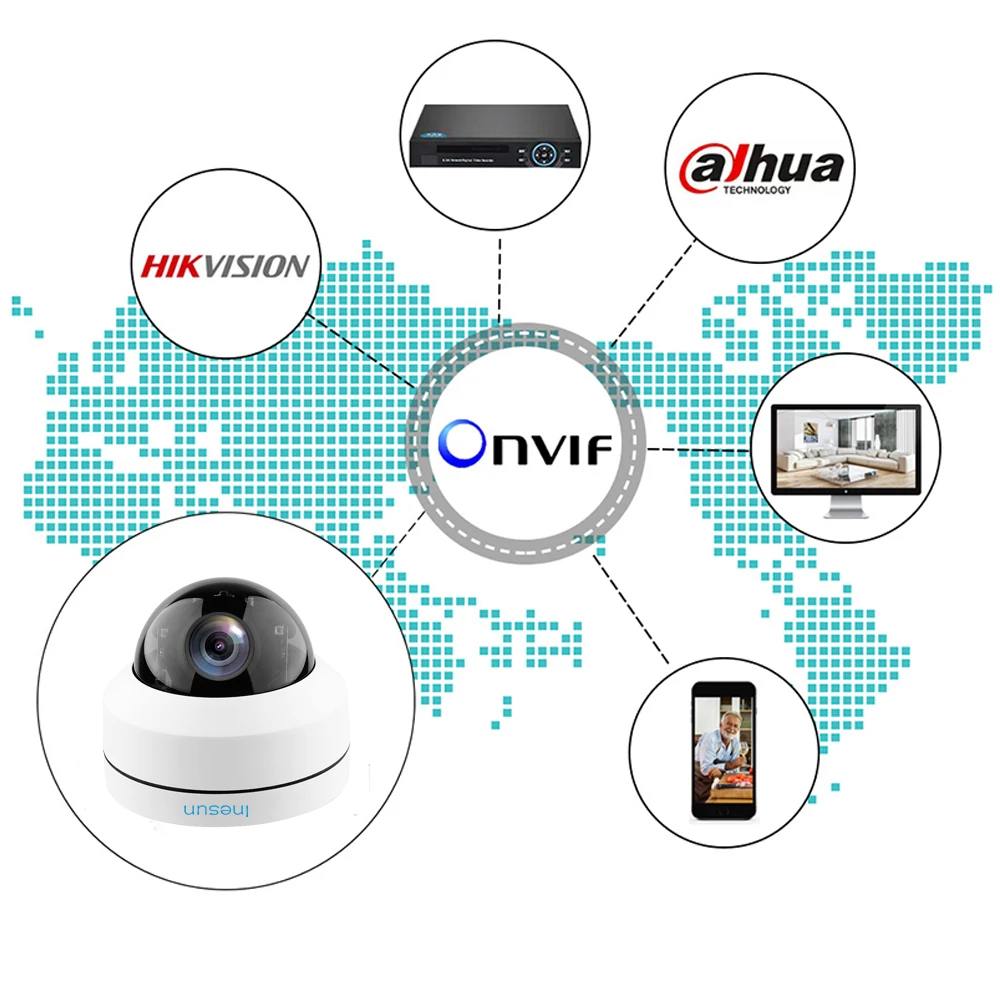

Q; is this Camera compatible with NVR Dahua or Hikvison?
A; yes, support
Q;is this camera support protocol ONVIF?
A;yes, support Onvif 2.4
Q;is this camera built-in microphone and Speaker ?
A;no, not support audio function.
Q;is this Camera with power PoE power supply 12V is included?
A; no, not come with 12V Power Supply, not includ poe swtich
Q;is this camera itself in memory card insert this possible?
A; no,not come with sd card slot
Installation Guide;

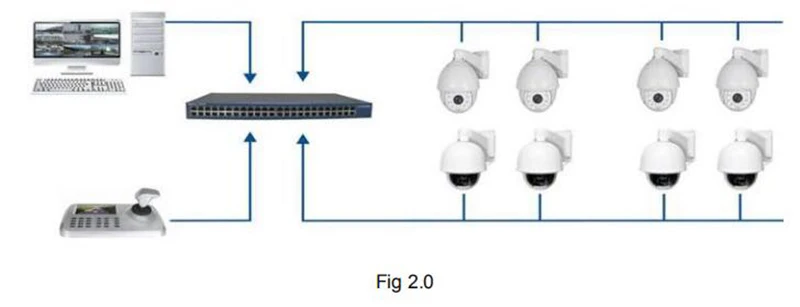

1;Equipment Connect
The whole system of HD-IP cameras default IP address is 192.168.1.110, System default sub-net mask is 255.255.255.0, User name is admin (No Password). (For ensuring the correct IP address, user can use searching tool EasyTool or install EasyVMS Client>Device Manager>Add Device).
2;Install Video Software
After all devices connection and network setting done, user can browse the video through PC browser by
access device IP address, while a plug is required to install for first visiting. If the PC has installed same version plug, enter the login interface directly. Please install with following steps.
The following page will appear after the first login, please download the plugin. You will get the plugin installation of VideoClientControl.exe
Download and run the plugin, click the [OK] button to install the plugin, close the IE and reopen after the
installation is complete, enter the IP address to login. Go to the browser and click "Remote Settings"-----"Network Settings"------"IP Address Bar" to enter the corresponding IP address, and then click Save; 2.3.1 IP address modification a.Modify IP address on Browser 2.1 Equipment Connect After the installation is complete, reopen IE and enter the device IP to display the login page. The default username is admin and the password is blank.

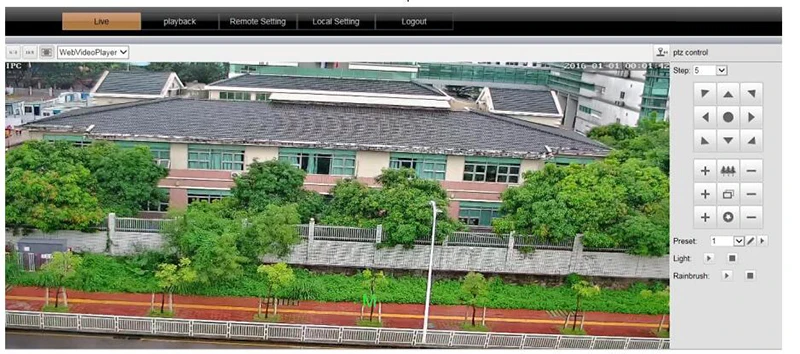

3;IE Browser
Enter the IP address in the IE address bar, and preview the device after logging in.
Bullet Points;
- 【VANDAL-PROOF POE DOME CAMERA】 Mini IK10 vandal proof security camera build in PoE, IP66 Weatherproof body construction,simple & easy installation; solid & waterproof for outdoor, covert & discreet, works great for home & business, front yard, porch, home living room, retail store, office, warehouse, restaurant, apartment, bank; Notice: Please do not connect the power line at the same time with the link POE
- 【5 MEGAPIXEL & 100FT NIGHT VISION】 5MP 4X optical zoom 2560x1920p dome ip camera, f=2.8-12mm, HD 2560x1920P resolution providethe crystal picture, 4pcs IR LEDs,the night vision up to 100ft
- 【PAN TILT ZOOM & H.265/MJPEG】 Pan-tilt-zoom camera with endless 355°pan & 70°tilt & 4x optical zoom,Support H.265/MJPEG compression,triple stream
- 【EASY USE & MOTION DETECTION & EMAIL ALERT】 Power up the ip camera, and connect the camera to the router, then follow the user manual to change the ip address, then you can live viewing on the web at home by enter the ip address. And also you can set email alert, when walk into the area where you set the Motion Detection, you will get a notification. Keep you safe day and night
- 【FREE APP & REMOTE ACCESS】 iPhone, Android, Windows PC, Mac remote access anywhere anytime by free APP "P6SLite". You just need use your email address to register an account, then enter the ID, then you will never miss any event from your home; WARRANTY:30 DAYS MONEY BACK GUARANTEE,1 YEARS TECHNICAL SUPPORT WARRANTY.
Please read before order :
1; DC12V/2A Power adapter is NOT Included.-If you need power adapter, please click:
Specification;
Mini dome camera build in PoE
ONVIF2.4/RTSP;Support P2P function

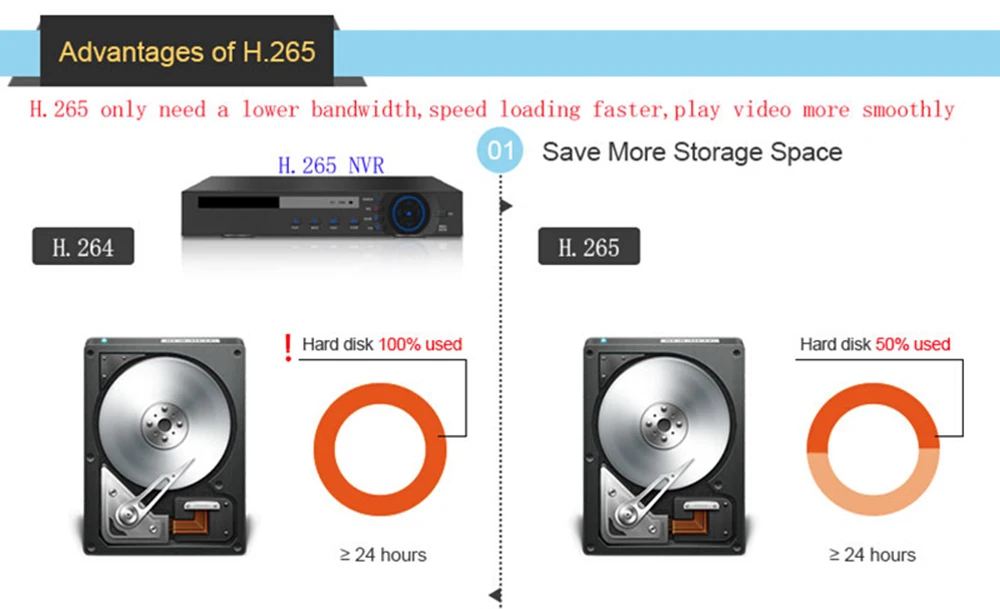

Support H.264 /H.265 compression
Pan/Tilt/Zoom, A-B scan, tour available
Compatible with HIKVISION ,DAHUA, XM NVR
Compatible with Milestone, NUUO and AXXON platform
Camera
Video compression: H.264/H.265
5MP:
Chip; HiSilicon-Hi3516EV300
Sensor: 1/3 5.0MP SONY IMX335 CMOS
Output pixel: 2560*1920@20fps
2MP:
Chip;HiSilicon-Hi3516EV200
Sensor; 1/3 2.0MP SONY IMX307 CMOS
Output pixel:1920*1080@25fps
D/N: IR-CUT
BLC: Auto
WB: Auto
S/N Ratio: >50dB
Communications Protocol: TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS,PPPoE，P2P
Software Control: IE, CMS, Management Platform
Mobile View(optional): Android / iPhone
Pan Range: 0º-355º
Tilt Range: 0-70º
Pan Speed: 0-25°/s
Tilt speed: 0-20º/s
Preset Points: 220
Guard Tours: 3 groups ( each group 16 preset、dwell time and speed selectable)
Guard Points: Max.16 points, dwell time user selectable
AB scan range: any point in range:0º~70º and 0º-355º
AB scan speed: 1-9 grades
Operating temperature: Outdoor: -30℃～+60℃
Operation menuEnglish
Auto Control IR LED: PWM
Support ambient light detection: IR illumination on 1-15 grades selectable
IR distance: up to 100ft
Humidity≤95% Non Condensing
Consumption≤10W
Lightning Protection: Transient voltage 3000V
Related validation: IP66,CE,FCC,RoHs
Packing Lists;
1 * Vandal-Proof IP Dome Camera
1 * CD
1 * User Manual
